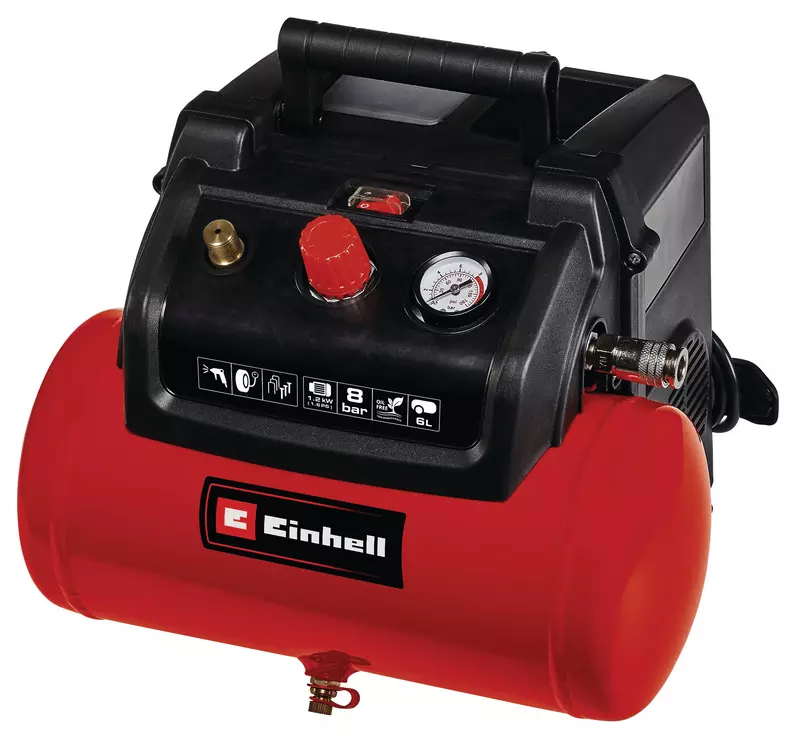

Air Compressor

TC-AC 190/6/8 OF

Item no.: 4020655 EAN: 4006825669190
  • Oil-free, service-free pump for low maintenance
  • Mobile compressor with 6 litre compressed air tank
  • Ergonomic design and handle for easy transport
  • Practical cable winding on the back of the device
  • Hook & storage compartment for optional accessories in the housing
  • Many applications up to 8 bar can be regulated using pressure regulators
  • Pressure gauge and quick coupling for regulated working pressure
  • Standing feet for safe standing during operation
  • 10-year warranty against rusting of the boiler
  • Safety valve ensures a high degree of user safety
  • Drainage screw for convenient maintenance
See more information
Show less information
einhell-classic-air-compressor-4020655-productimage-001
Article description

The Einhell compressor TC-AC 190/6/8 OF is a real all-rounder for various tasks in the home, workshop and garage. With the right tools, the compressor can be used in numerous applications: from painting and oiling to blow-out and cleaning work. Tyres, balls and mattresses are filled with air in no time. The powerful motor operates with an impressive 1.2 kW, an engine speed of 18,000 rpm and requires only little maintenance. The integrated, oil-free pump generates up to 8 bar of operating pressure at an intake capacity of 190 litres per minute and a pump speed of up to 3,800 rpm. The mobile compressor is equipped with a 6-litre compressed air tank, which allows for long-lasting operation. The cable winding on the rear side of the housing is practical. Hook and storage compartment for optional accessories are integrated in the housing. Thanks to the pressure reducer, which can be regulated up to 8 bar, the compressor can handle a wide range of applications. Pressure gauge and quick coupling are provided for the regulated working pressure. The feet ensure secure standing during operation. The safety valve is used for user safety. The drainage screw allows convenient maintenance. Einhell offers a ten-year warranty against rusting of the boiler.

Technical details

Max. operating pressure8 bar
Motor speed18000 min^-1
Motor typeBrush motor
Number of cylinders1 pcs
Output power 0 bar130 l/min
Output power 4 bar77 l/min
Output power 7 bar55 l/min
Product weight8.9 Kg
Pump speed3800 min^-1
Sound pressure level (volume)77 dB (A)
Suction power190 l/min
Tank volume6 l

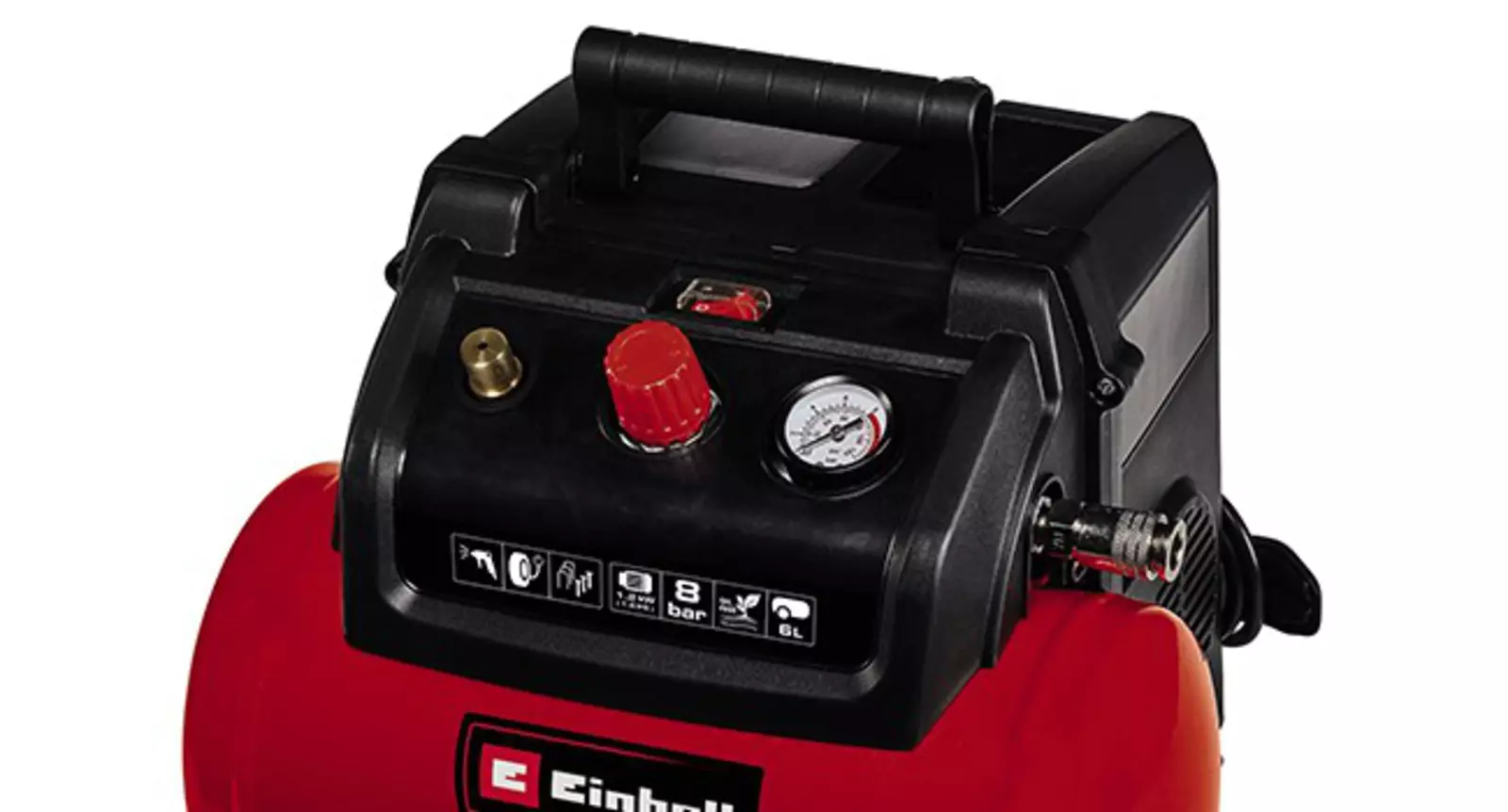

Small but mighty

Reliable compressor for flexible use

The Einhell compressor TC-AC 190/6/8 OF impresses with 1.2 kW power and an intake capacity of 190 litres per minute. With max. 8 bar operating pressure and a pump speed of 3,800 rpm, the oil-free compressor is suitable for a wide range of compressed air work around the house, workshop and garden. With the help of the quick coupling, a wide variety of compressed air tools can be easily connected to the compact compressor.

Small-but-mighty
6-litres-compressed-air-tank

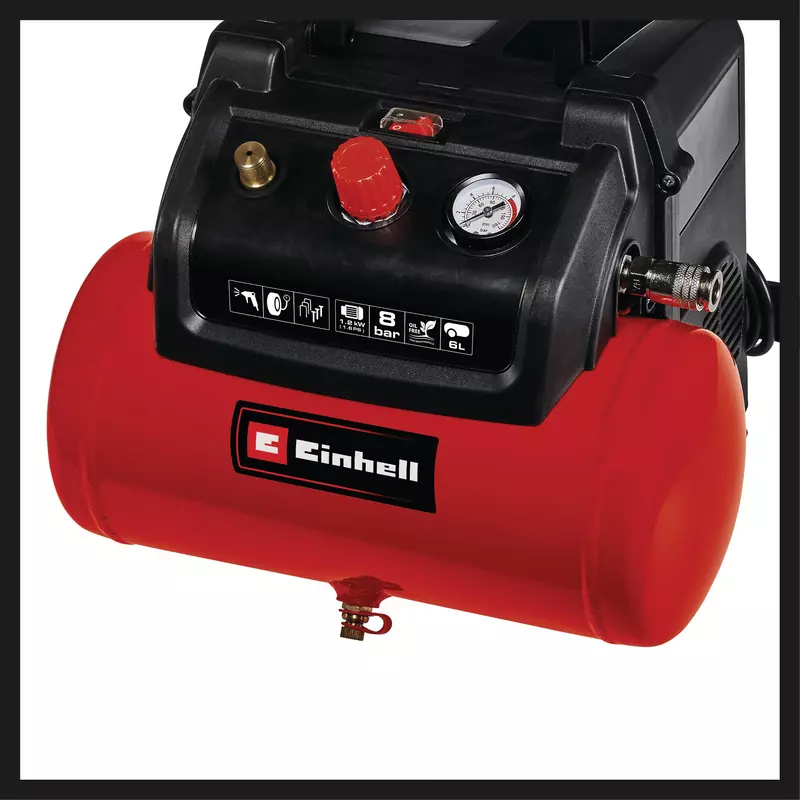

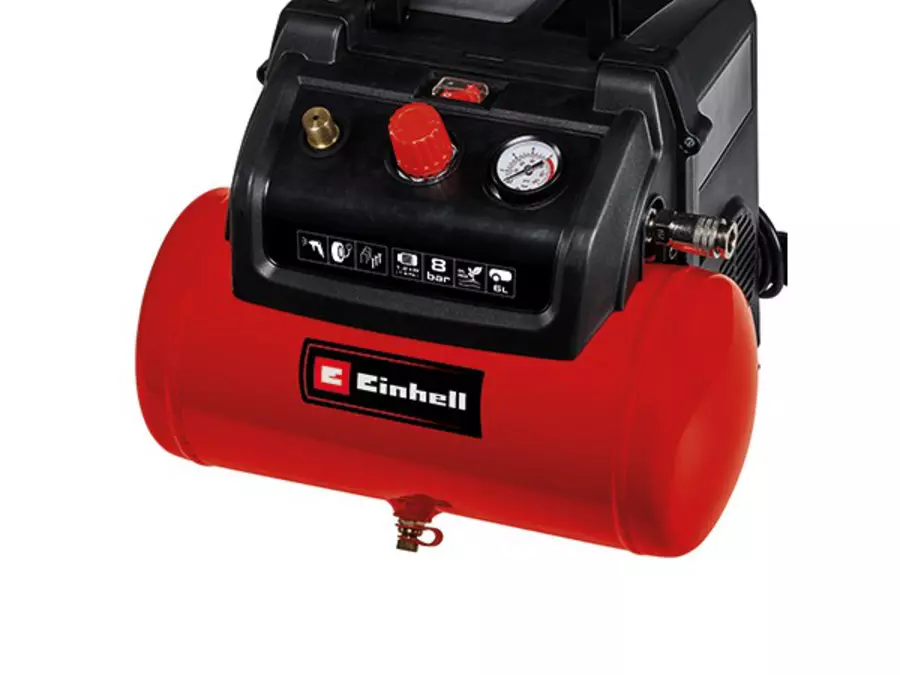

6 litres compressed air tank

The compressed air tank holds up to 6 litres of volume and offers sufficient air reserves for various compressed air work.

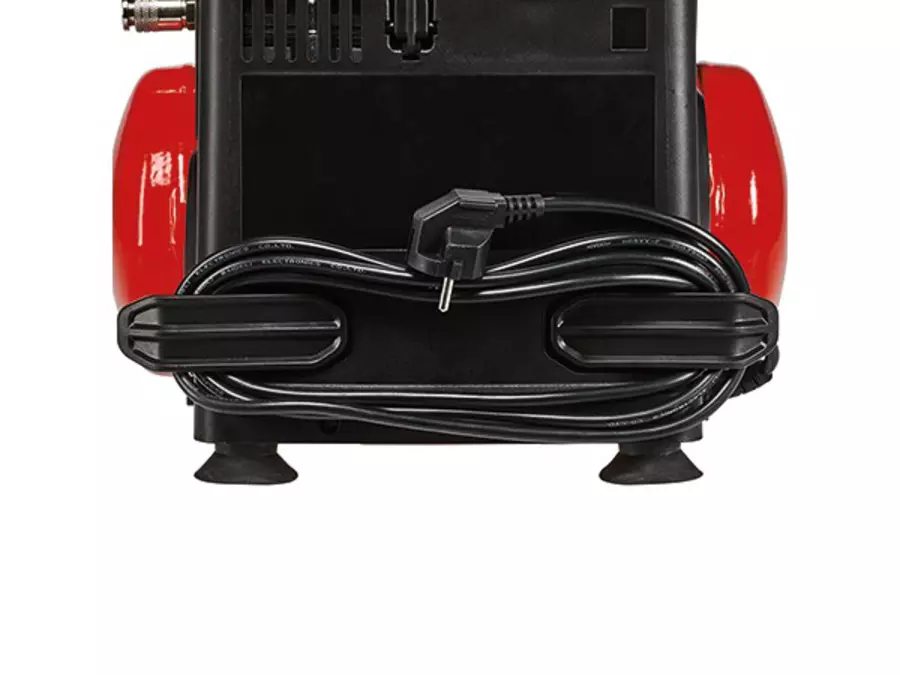

No-more-cable-chaos

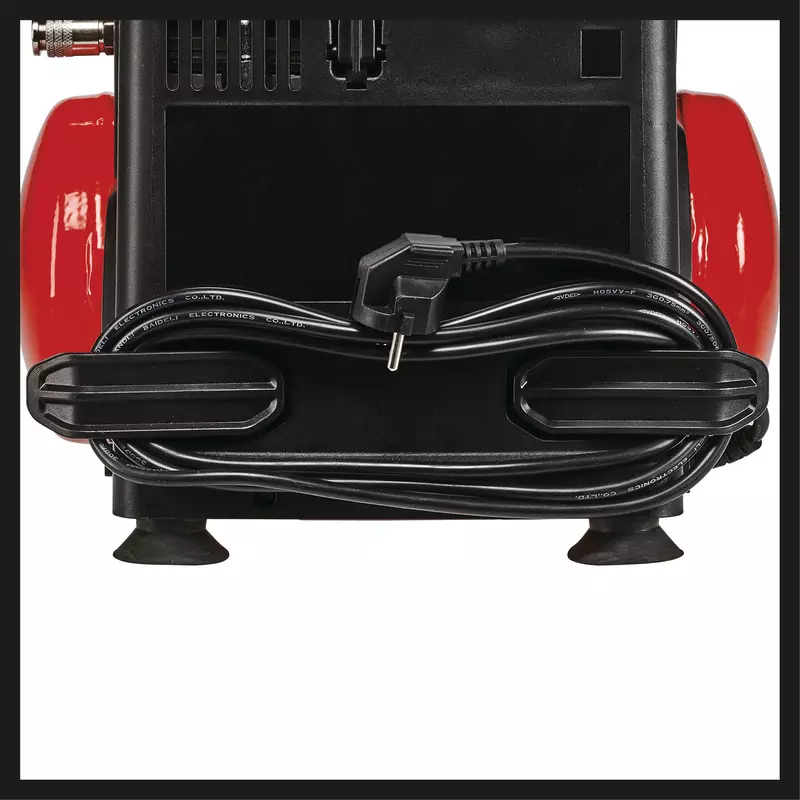

No more cable chaos

The compressor is equipped with a practical cable holder for neat and tidy power cable storage.

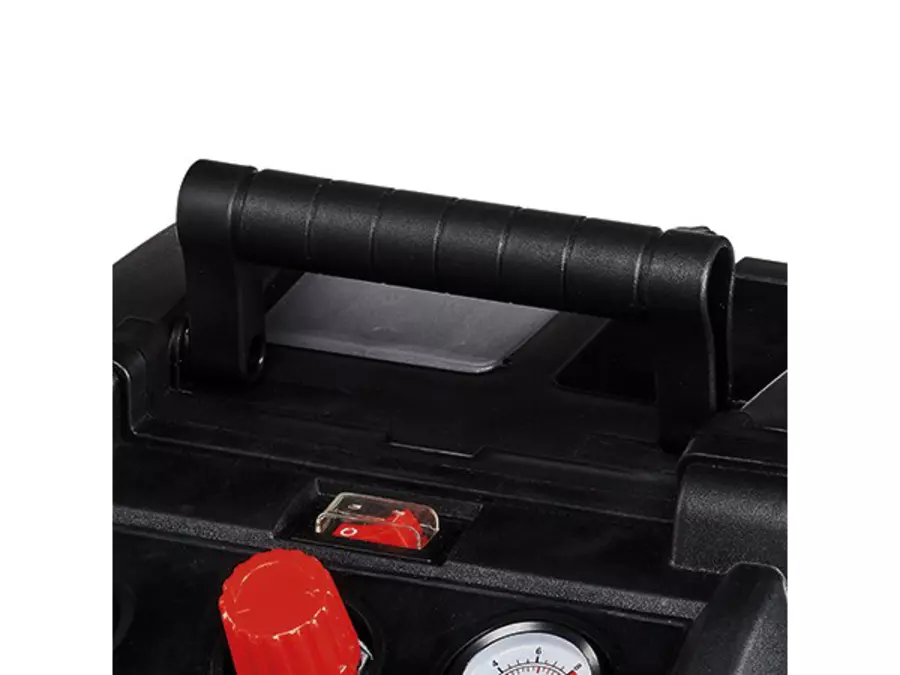

Simple-transport

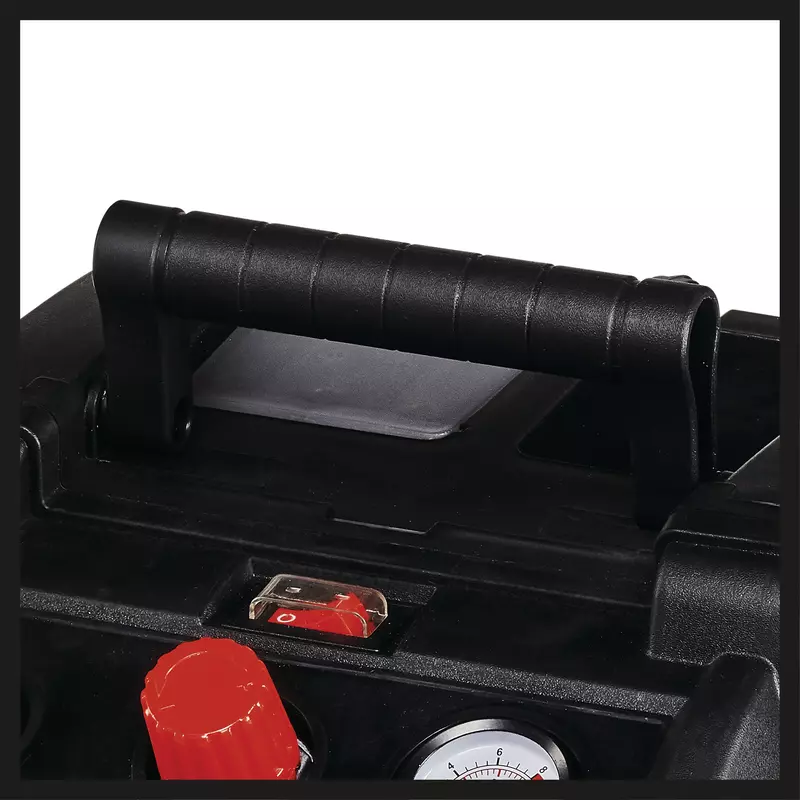

Simple transport

The compact, 9 kg compressor is easy to transport thanks to its large carrying handle on the top.

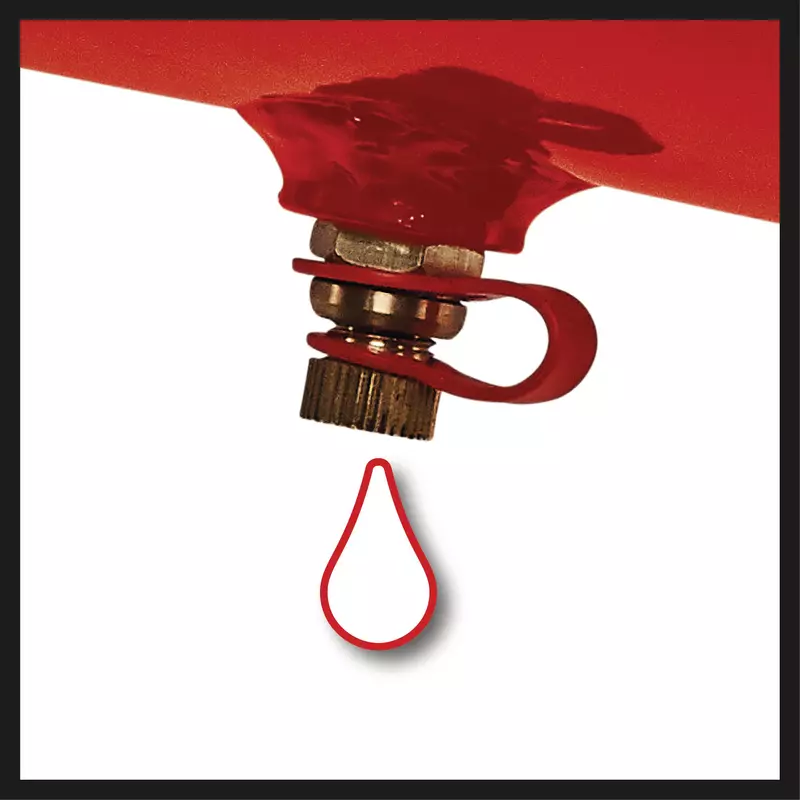

Convenient-maintenance

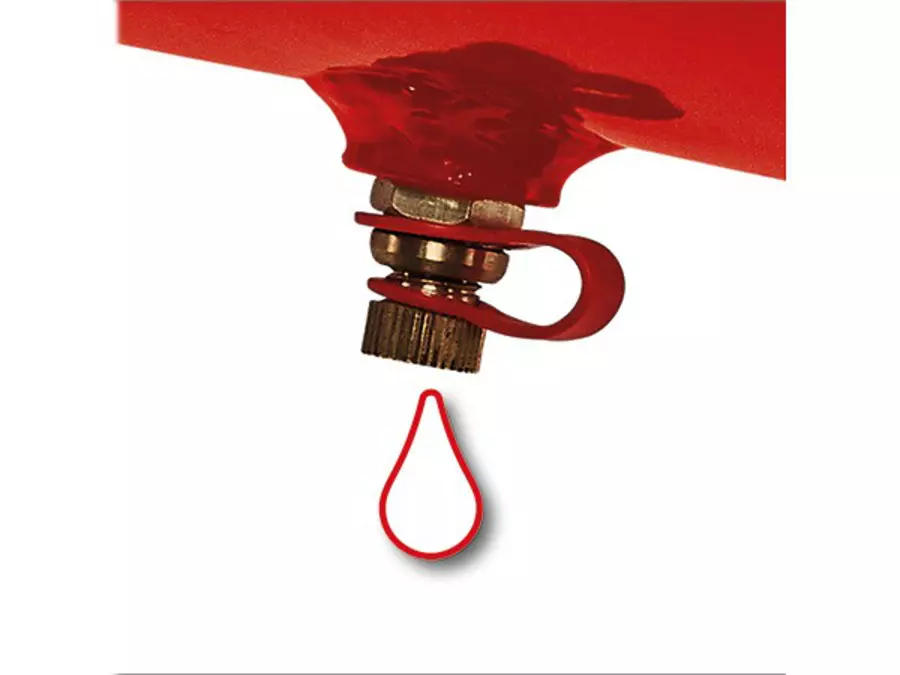

Convenient maintenance

The condensate produced by the overpressure in the boiler can be emptied with the drainage screw on the underside.

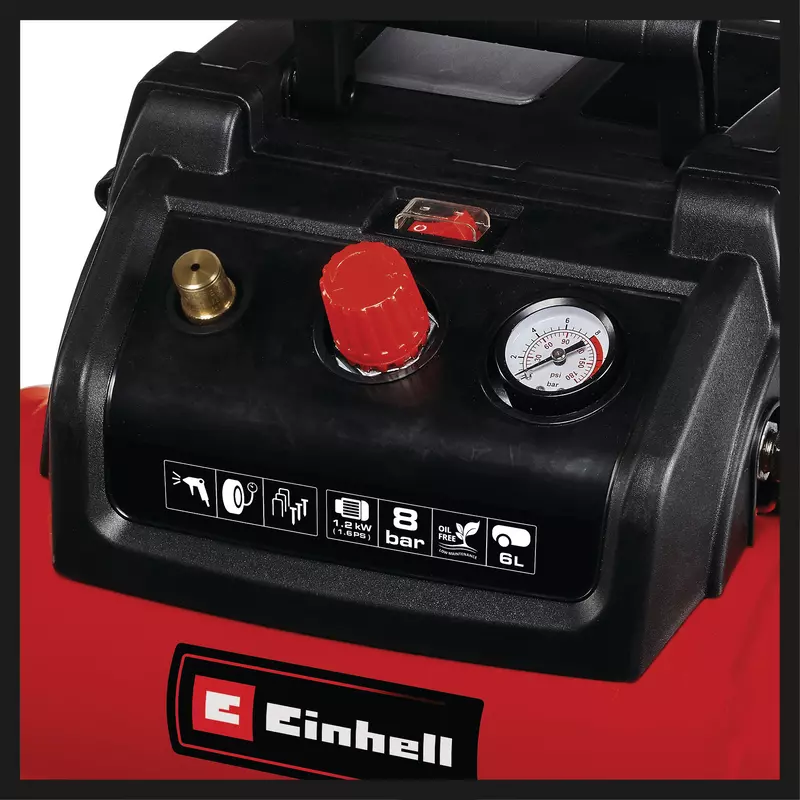

Powerful-motor

Powerful motor

The powerful motor operates with an impressive 1.2 kW and an engine speed of 18,000 rpm. This makes the compressor suitable for a wide variety of applications around the home and garden.

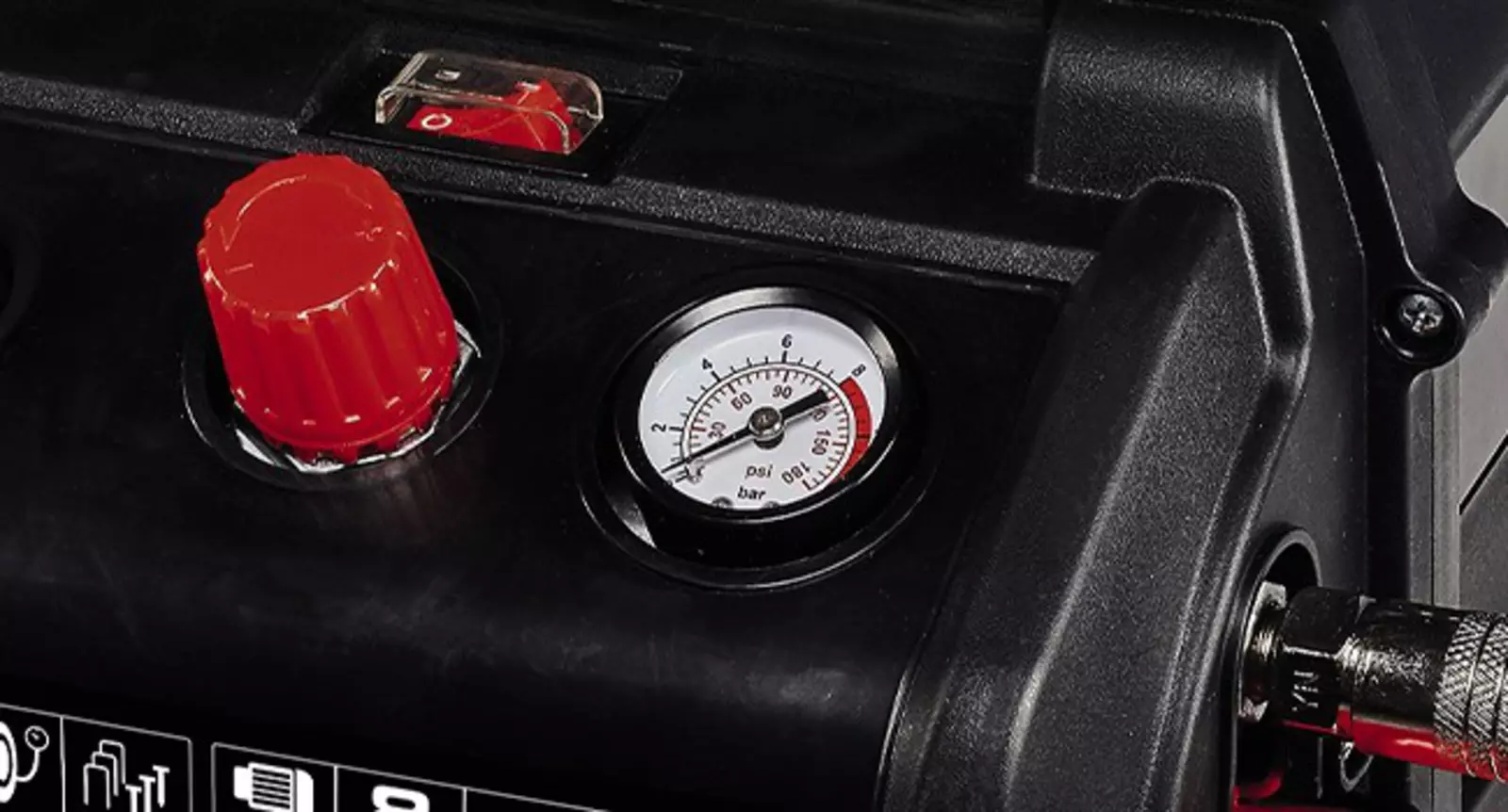

Adjustable-working-pressure

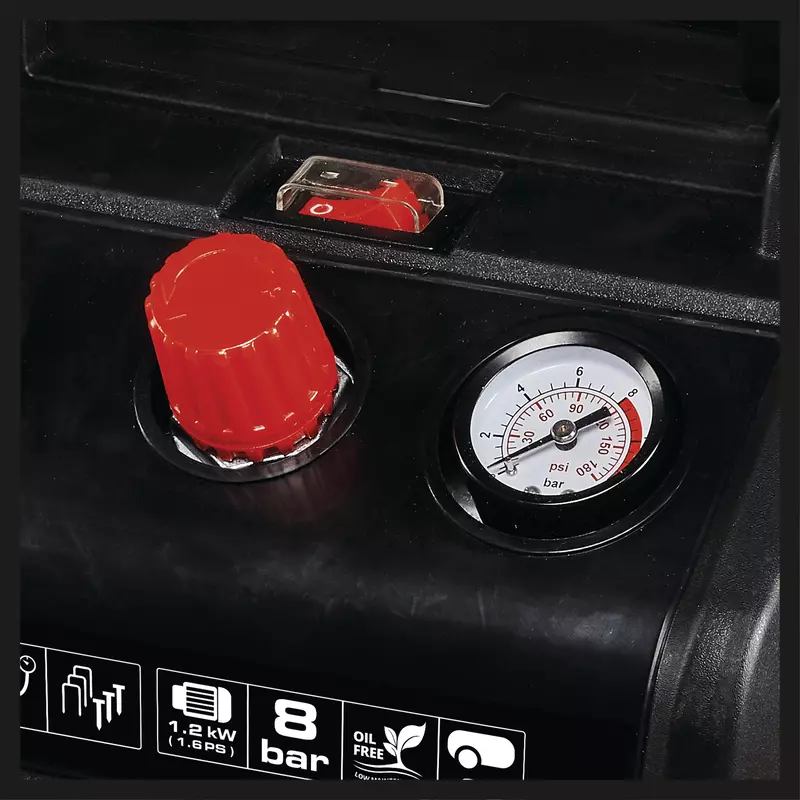

Adjustable working pressure

The powerful compressor delivers up to 8 bar of operating pressure, which can be regulated by a pressure reducer. The regulated working pressure can be read off and checked on the pressure gauge at any time.
